Description
Standard Features:
• Stainless steel exterior including front, back
• sides, kick plate, back guard and over shelf
• 60” combination ranges standard with either a
• 24”, 36” or 48” griddle top with 2, 4 or 6 burners
• Heavy duty 3/4” thick polished steel griddle plate
• Drip tray provided under burners to catch grease
• drippings
• 32,000 BTU top burners, 27,000 BTU griddle &
• 27,000 BTU oven burners
• Oven temperature range between 175°F to 550°F
• Standing pilot for open top burners
• Oven pilot with 100% safety shut off
• Enamel interior oven for easy cleaning
• Multiple position oven rack guides
• Two(2) chrome oven rack per oven standard
• AGR-48G2B is available in Natural Gas
• AGR-36G4B and AGR-24G6B are available in
• Natural and Propane Gas
• 3/4” NPT rear gas connection and regulator
• provided
• Four(4) casters standard
• Leg kit part #: 301110006
• Extra oven rack part #: 301100012

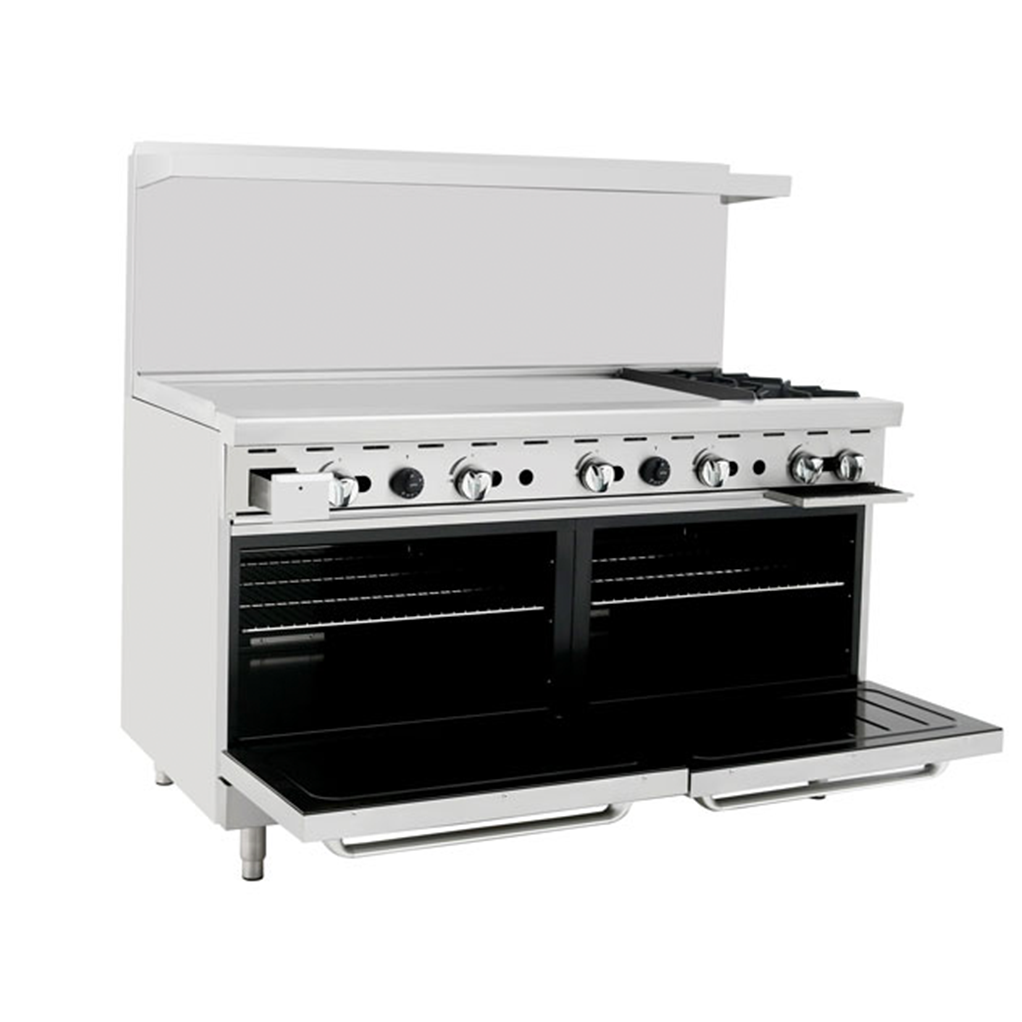

Model: AGR-48G2B
Gas Type: NG
Burner Name: Hot Plates Griddle Oven
Total BTU BTU/h: 64,000 102,000 54,000
Number of Burners: 2 4 2002
Value Types: Pilot Light
Oven Size: 26 1/2 × 26 × 14
Hot Plates Working Area (inch): 2pcs 11 4/5 × 11 4/5
Griddle Working Area(inch): 48 × 20 5/8
Exterior Dimensions (inch): 60 × 31 × 57 3/8
Net Weight (lbs): 805
Gross Weight (lbs): 971
:
• Stainless steel exterior including front, back
• sides, kick plate, back guard and over shelf
• 60” combination ranges standard with either a
• 24”, 36” or 48” griddle top with 2, 4 or 6 burners
• Heavy duty 3/4” thick polished steel griddle plate
• Drip tray provided under burners to catch grease
• drippings
• 32,000 BTU top burners, 27,000 BTU griddle &
• 27,000 BTU oven burners
• Oven temperature range between 175°F to 550°F
• Standing pilot for open top burners
• Oven pilot with 100% safety shut off
• Enamel interior oven for easy cleaning
• Multiple position oven rack guides
• Two(2) chrome oven rack per oven standard
• AGR-48G2B is available in Natural Gas
• AGR-36G4B and AGR-24G6B are available in
• Natural and Propane Gas
• 3/4” NPT rear gas connection and regulator
• provided
• Four(4) casters standard
• Leg kit part #: 301110006
• Extra oven rack part #: 301100012
Model: AGR-48G2B
Gas Type: NG
Burner Name: Hot Plates Griddle Oven
Total BTU BTU/h: 64,000 102,000 54,000
Number of Burners: 2 4 2002
Value Types: Pilot Light
Oven Size: 26 1/2 × 26 × 14
Hot Plates Working Area (inch): 2pcs 11 4/5 × 11 4/5
Griddle Working Area(inch): 48 × 20 5/8
Exterior Dimensions (inch): 60 × 31 × 57 3/8
Net Weight (lbs): 805
Gross Weight (lbs): 971
:
