Description
Standard Features:
• Stainless steel exterior including front, back
• sides, kick plate, back guard and over shelf
• 60” combination ranges standard with either
• a 24”, 36” or 48” griddle top with 2, 4 or 6
• burners
• Heavy duty 3/4” thick polished steel griddle
• plate

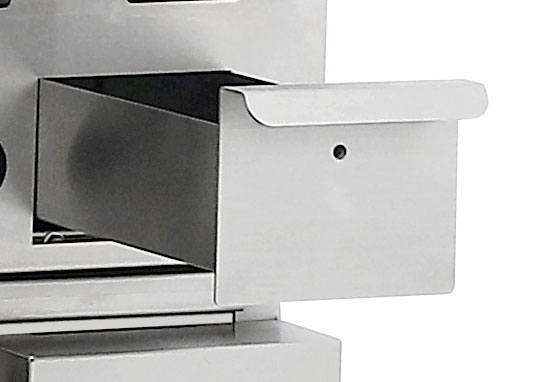

• Drip tray provided under burners to catch
• grease drippings
• 32,000 BTU top burners, 27,000 BTU
• griddle & 27,000 BTU oven burners
• Oven temperature range between 175°F to
• 550°F
• Standing pilot for open top burners
• Oven pilot with 100% safety shut off
• Enamel interior oven for easy cleaning
• Multiple position oven rack guides
• Two(2) chrome oven rack per oven standard
• AGR-2B48G is available in Natural
• AGR-4B36G and AGR-6B24G are available
• in Natural and Propane
• 3/4” NPT rear gas connection and regulator
• provided
• Four(4) casters standard
• Leg kit part #: 301110006
• Extra oven rack part #: 301100012
Model: AGR-4B36GR
Gas Type: NG
Burner Name: Hot Plates Griddle Oven
Total BTU BTU/h: 128,000 75,000 54,000
Number of Burners: 4 3 2002
Value Types: Pilot Light
Oven Size: 26 1/2 × 26 × 14
Hot Plates: 4pcs 114/5×114/5
Griddle Working Area (inch): 36 × 20 5/8
Exteriorl Dimensions (inch): 60 × 31 × 57 3/8
Net Weight (lbs): 792
Gross Weight (lbs): 949
:
• Stainless steel exterior including front, back
• sides, kick plate, back guard and over shelf
• 60” combination ranges standard with either
• a 24”, 36” or 48” griddle top with 2, 4 or 6
• burners
• Heavy duty 3/4” thick polished steel griddle
• plate
• Drip tray provided under burners to catch
• grease drippings
• 32,000 BTU top burners, 27,000 BTU
• griddle & 27,000 BTU oven burners
• Oven temperature range between 175°F to
• 550°F
• Standing pilot for open top burners
• Oven pilot with 100% safety shut off
• Enamel interior oven for easy cleaning
• Multiple position oven rack guides
• Two(2) chrome oven rack per oven standard
• AGR-2B48G is available in Natural
• AGR-4B36G and AGR-6B24G are available
• in Natural and Propane
• 3/4” NPT rear gas connection and regulator
• provided
• Four(4) casters standard
• Leg kit part #: 301110006
• Extra oven rack part #: 301100012
Model: AGR-4B36GR
Gas Type: NG
Burner Name: Hot Plates Griddle Oven
Total BTU BTU/h: 128,000 75,000 54,000
Number of Burners: 4 3 2002
Value Types: Pilot Light
Oven Size: 26 1/2 × 26 × 14
Hot Plates: 4pcs 114/5×114/5
Griddle Working Area (inch): 36 × 20 5/8
Exteriorl Dimensions (inch): 60 × 31 × 57 3/8
Net Weight (lbs): 792
Gross Weight (lbs): 949
:
