Description
Standard Features:
• Stainless steel exterior and interior
• 35,000 BTU stainless steel burners with standby pilot
• Independent manual controls every 12”

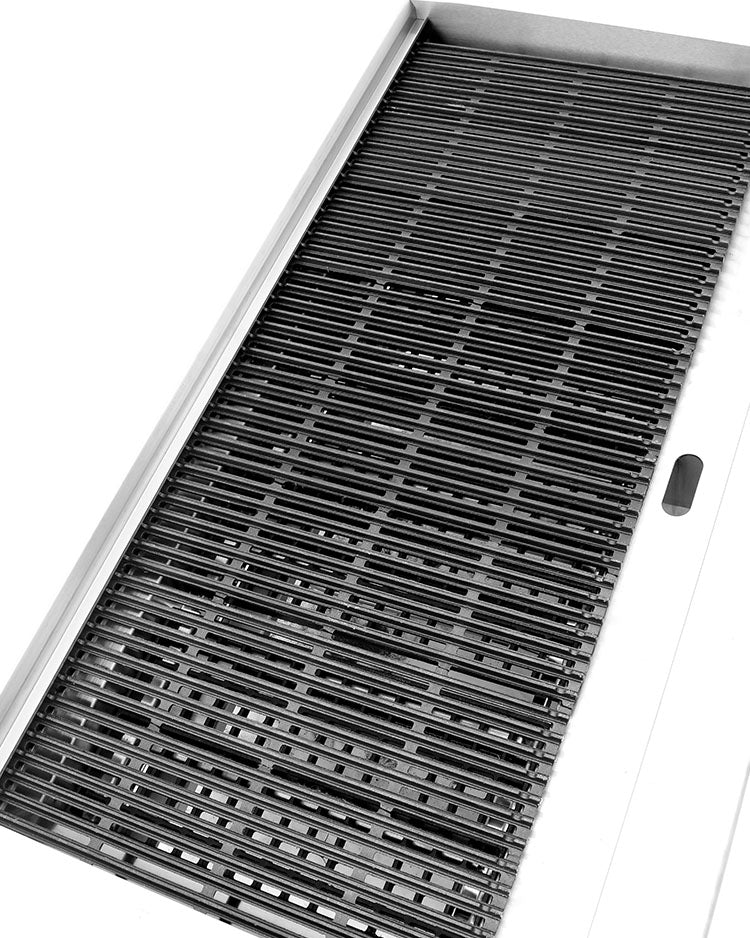

• Heavy-duty, reversible cast iron grates
• Top grates are adjustable multi-level
• Units include lava briquettes standard
• Adjustable, stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard

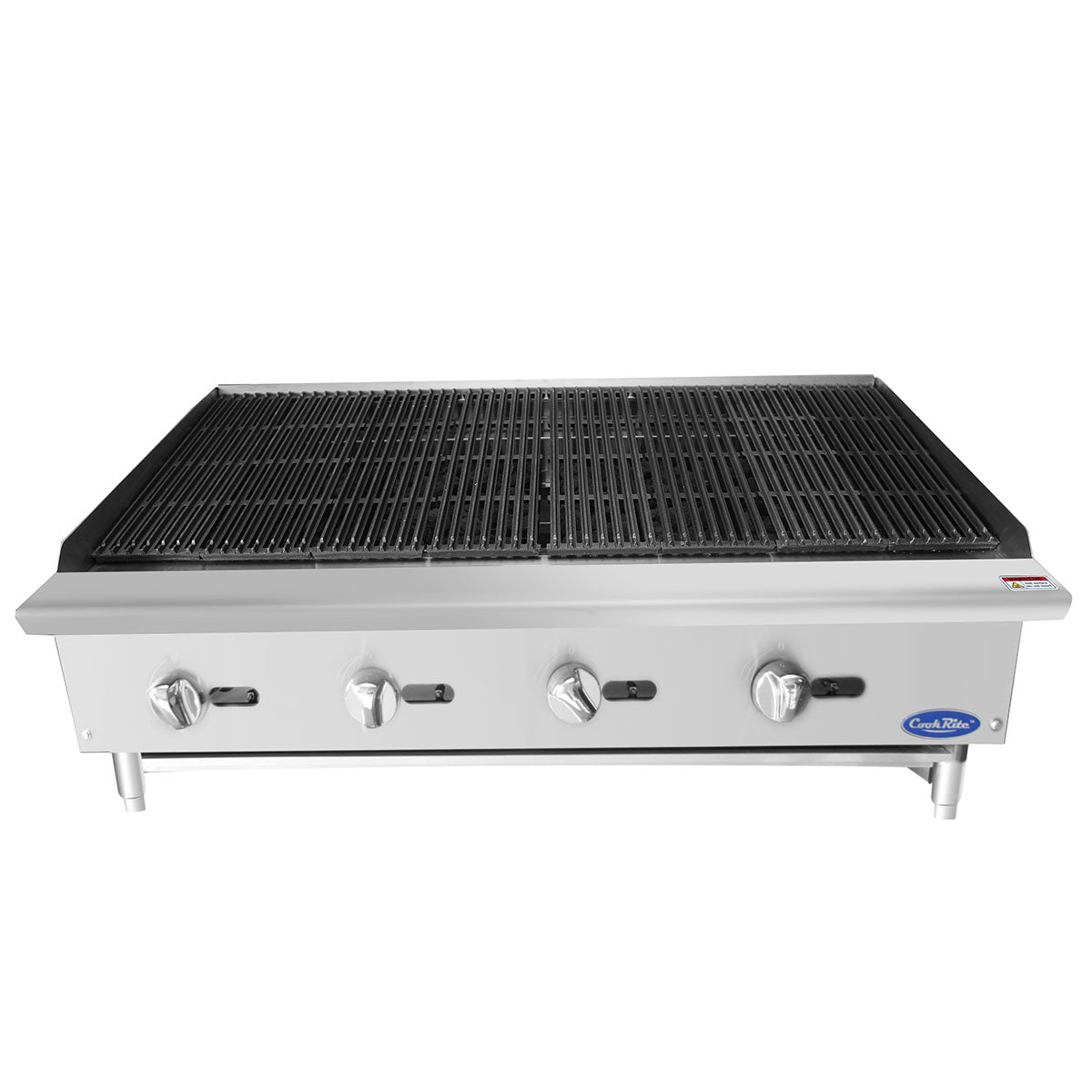

Model: ATCB-48
Burners and Control Method: 4 Burners, Independent Manual Control
Gas Type: NG
Intake-tube Pressure (in. W.C.): 4
Per B.T.U./h: 35000
Total B.T.U./h: 140000
Regulator: 4" w.c.
Work Area: 47 9/10 × 20 1/5
Exterior Dimensions (inch): 48 × 27 3/5 × 15 1/5
Net Weight (lbs): 248
Gross Weight (lbs): 314
:
:
• Stainless steel exterior and interior
• 35,000 BTU stainless steel burners with standby pilot
• Independent manual controls every 12”
• Heavy-duty, reversible cast iron grates
• Top grates are adjustable multi-level
• Units include lava briquettes standard
• Adjustable, stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard
Model: ATCB-48
Burners and Control Method: 4 Burners, Independent Manual Control
Gas Type: NG
Intake-tube Pressure (in. W.C.): 4
Per B.T.U./h: 35000
Total B.T.U./h: 140000
Regulator: 4" w.c.
Work Area: 47 9/10 × 20 1/5
Exterior Dimensions (inch): 48 × 27 3/5 × 15 1/5
Net Weight (lbs): 248
Gross Weight (lbs): 314
:
:
