Description
Standard Features:
• Stainless steel exterior and interior
• Welded stainless steel tank
• Heavy duty burners with a stnding flame and standby pilots

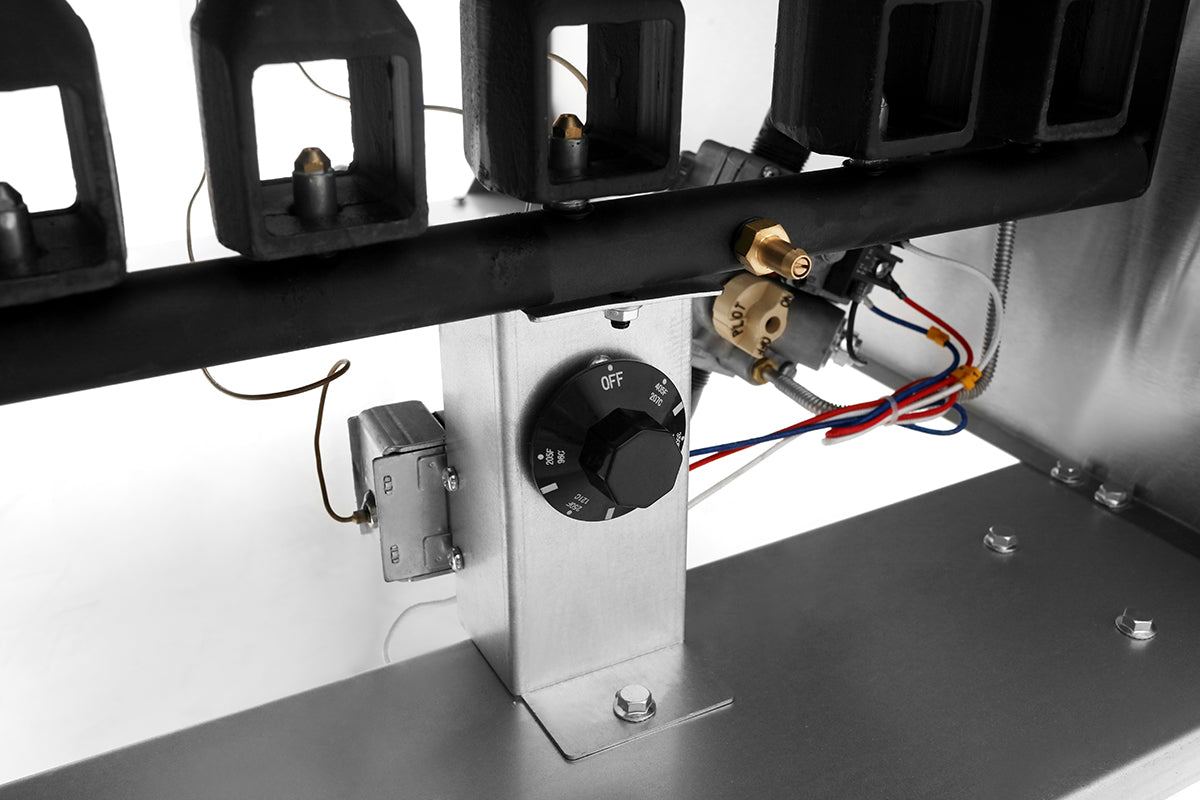

• High quality thermostat maintains select temperature automatically between 200°F-400°F
• Oil cooling zone in the bottom of the tank captures food particles and extends oil life
• Safety valve with an automatic voltage stabilizing function
• Self-reset high temperature limiting device
• Two(2) nickel plated baskets with coated handles standard
• Wire crumb rack and basket hanger standard
• Available in Natural & Propane gas
• 3/4 ” NPT rear gas connection and regulator
• Four(4) casters standard
• Leg kit part #: 301110006
• Fryer splash guard part #: 21101001047

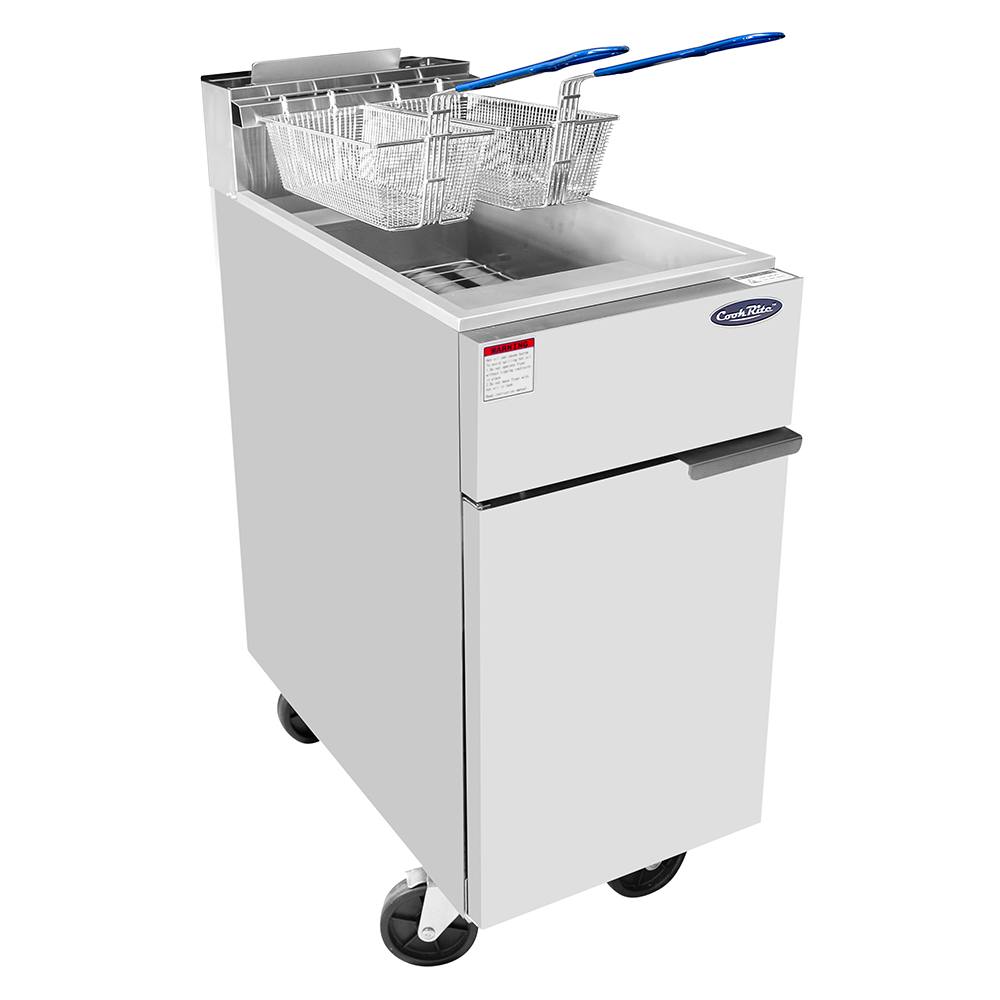

Model: ATFS-40
Burners and Control Method: 3 Burners Independent Manual Control
Gas Type: NG LP
Intake-tube Pressure (in. W.C.): 45026
Per B.T.U./h: 34,000 30,000
Total B.T.U./h: 102,000 90,000
Basket Dimensions: 13 3/10 ×6 1/2 × 5 9/10
Exteriror Dimension: 15 3/5×30 1/10×44 2/5
Nozzle No.#: NG36 LP52
Regulator: 4" w.c. 10" w.c.
Net Weight lbs: 131
Gross Weight: 160
:
• Stainless steel exterior and interior
• Welded stainless steel tank
• Heavy duty burners with a stnding flame and standby pilots
• High quality thermostat maintains select temperature automatically between 200°F-400°F
• Oil cooling zone in the bottom of the tank captures food particles and extends oil life
• Safety valve with an automatic voltage stabilizing function
• Self-reset high temperature limiting device
• Two(2) nickel plated baskets with coated handles standard
• Wire crumb rack and basket hanger standard
• Available in Natural & Propane gas
• 3/4 ” NPT rear gas connection and regulator
• Four(4) casters standard
• Leg kit part #: 301110006
• Fryer splash guard part #: 21101001047
Model: ATFS-40
Burners and Control Method: 3 Burners Independent Manual Control
Gas Type: NG LP
Intake-tube Pressure (in. W.C.): 45026
Per B.T.U./h: 34,000 30,000
Total B.T.U./h: 102,000 90,000
Basket Dimensions: 13 3/10 ×6 1/2 × 5 9/10
Exteriror Dimension: 15 3/5×30 1/10×44 2/5
Nozzle No.#: NG36 LP52
Regulator: 4" w.c. 10" w.c.
Net Weight lbs: 131
Gross Weight: 160
:
