Description
Standard Features:
• Stainless steel exterior and interior
• Welded stainless steel tank

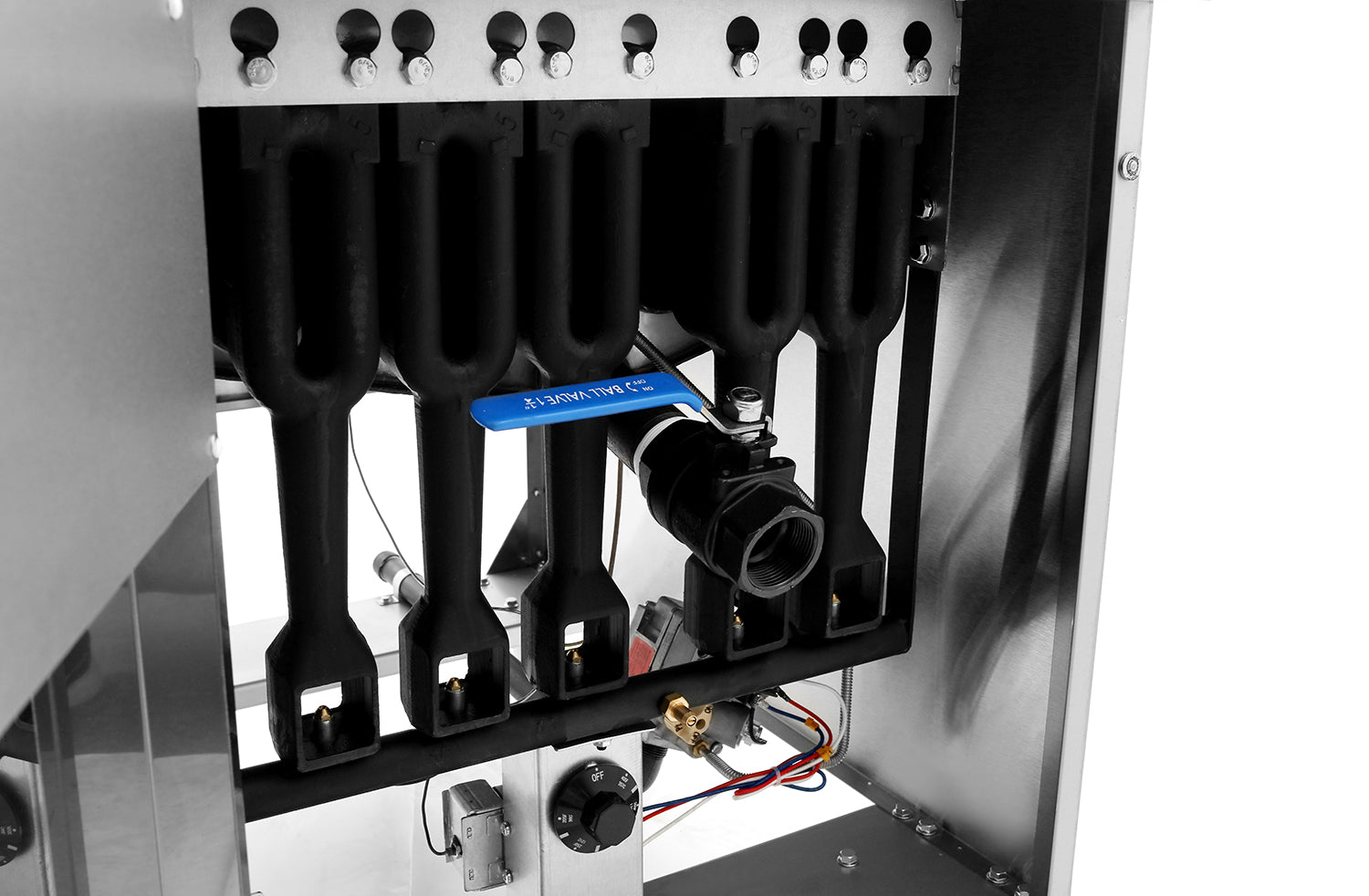

• Heavy duty burners with a stnding flame and
• standby pilots

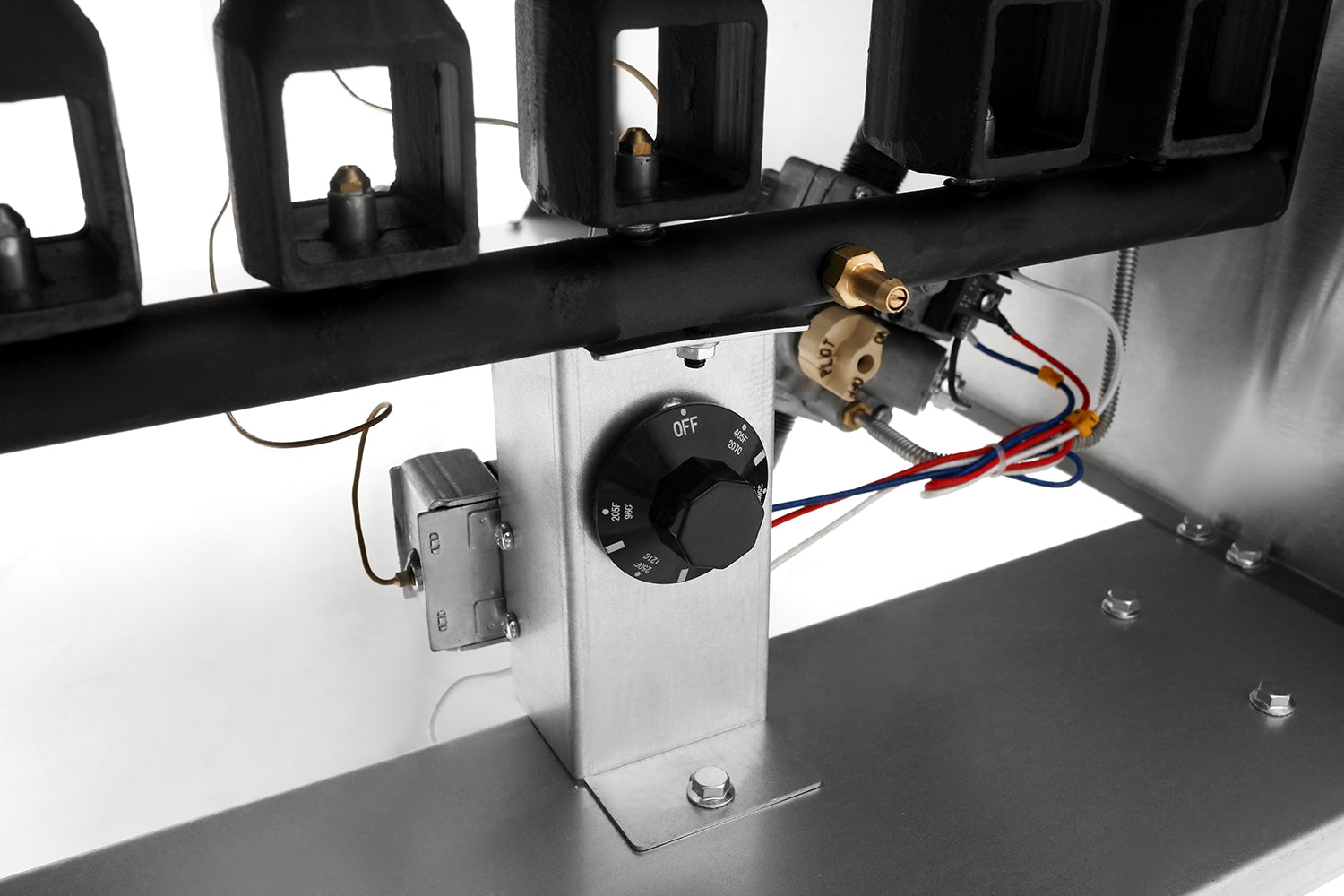

• High quality thermostat maintains select
• temperature automatically between 200°F–400°F
• Oil cooling zone in the bottom of the tank captures
• food particles and extends oil life
• Safety valve with an automatic voltage stabilizing
• function
• Self-reset high temperature limiting device

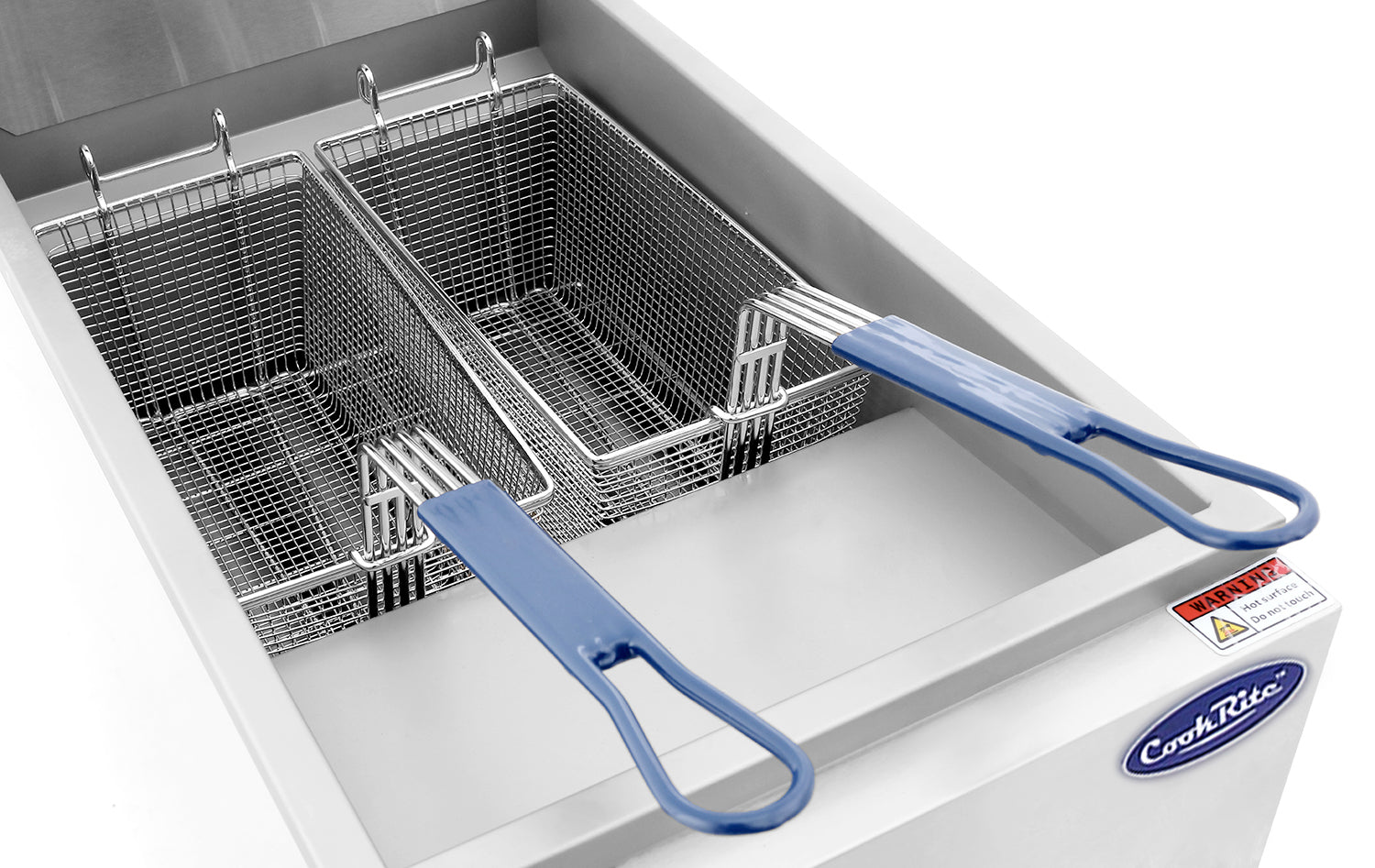

• Two(2) nickel plated baskets with coated handles
• standard
• Wire crumb rack and basket hanger standard
• Available in Natural and Propane gas
• 3/4 ” NPT rear gas connection and regulator
• Four(4) casters standard
• Leg kit part #: 301110006
• Fryer splash guard

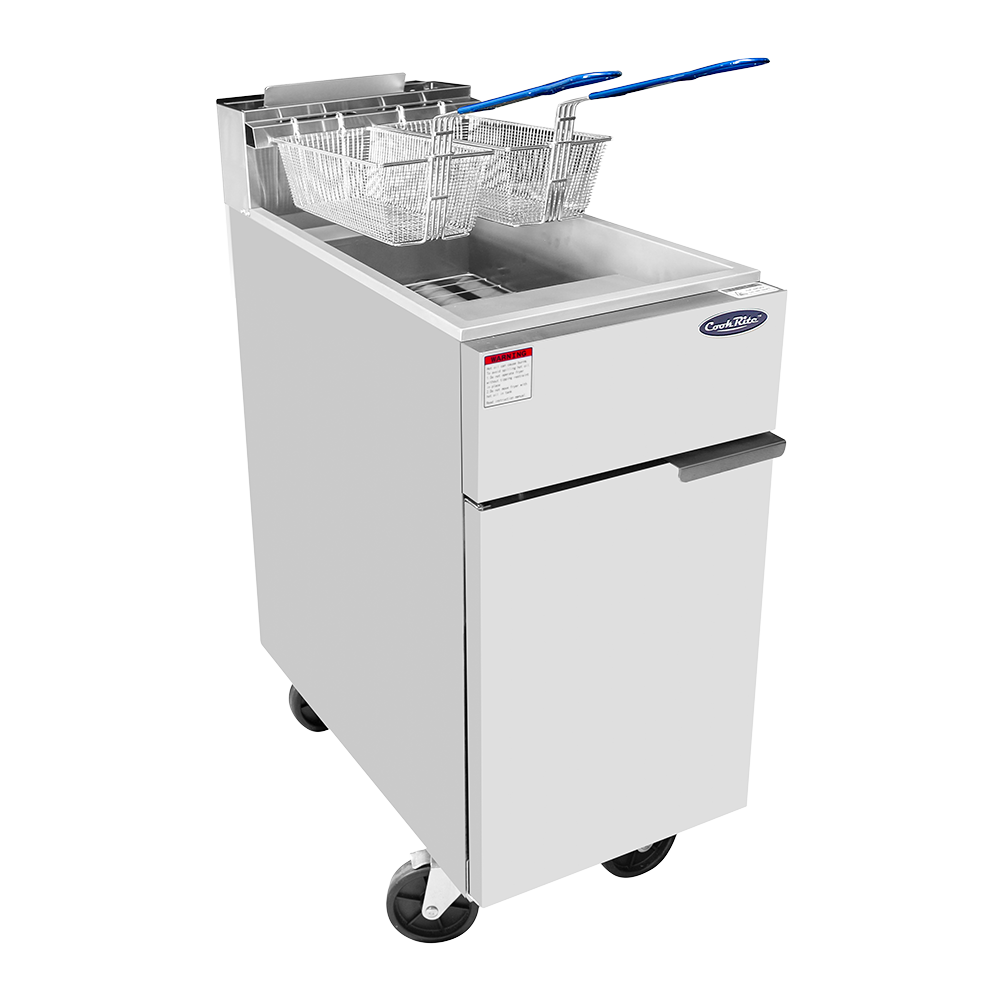

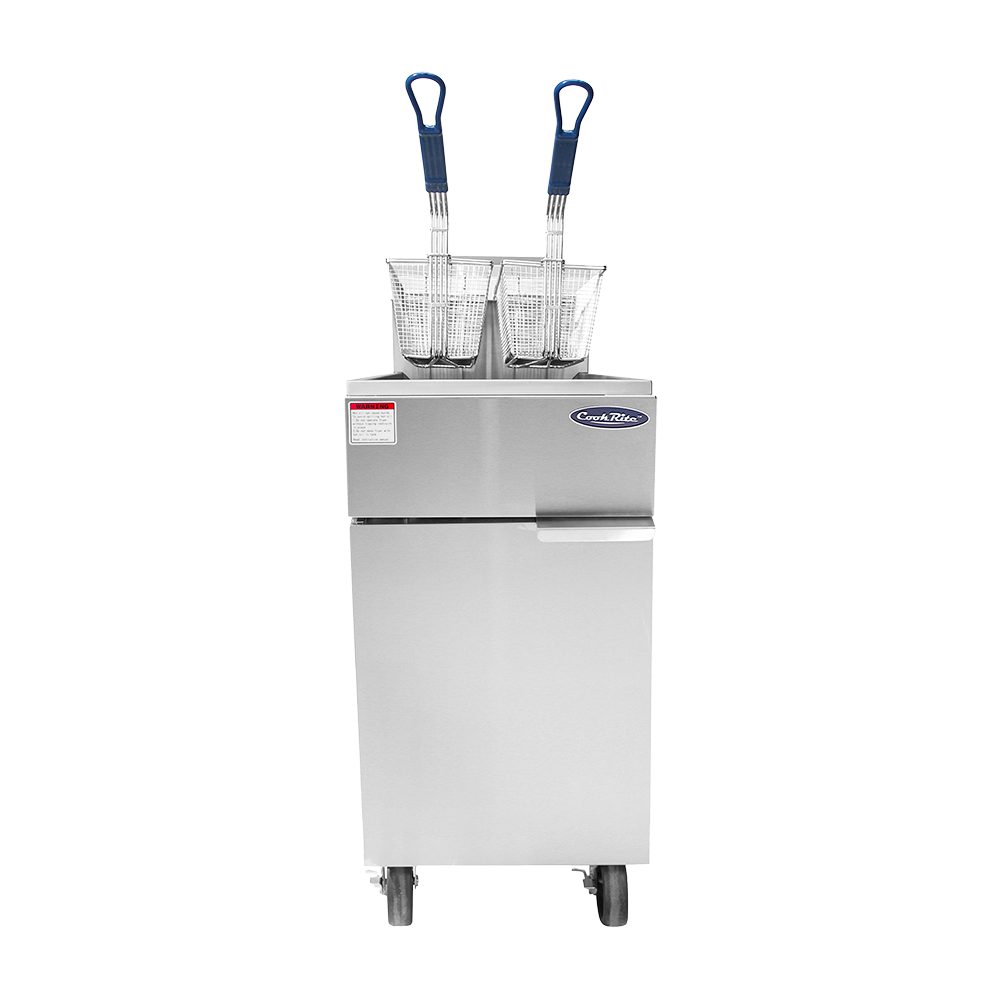

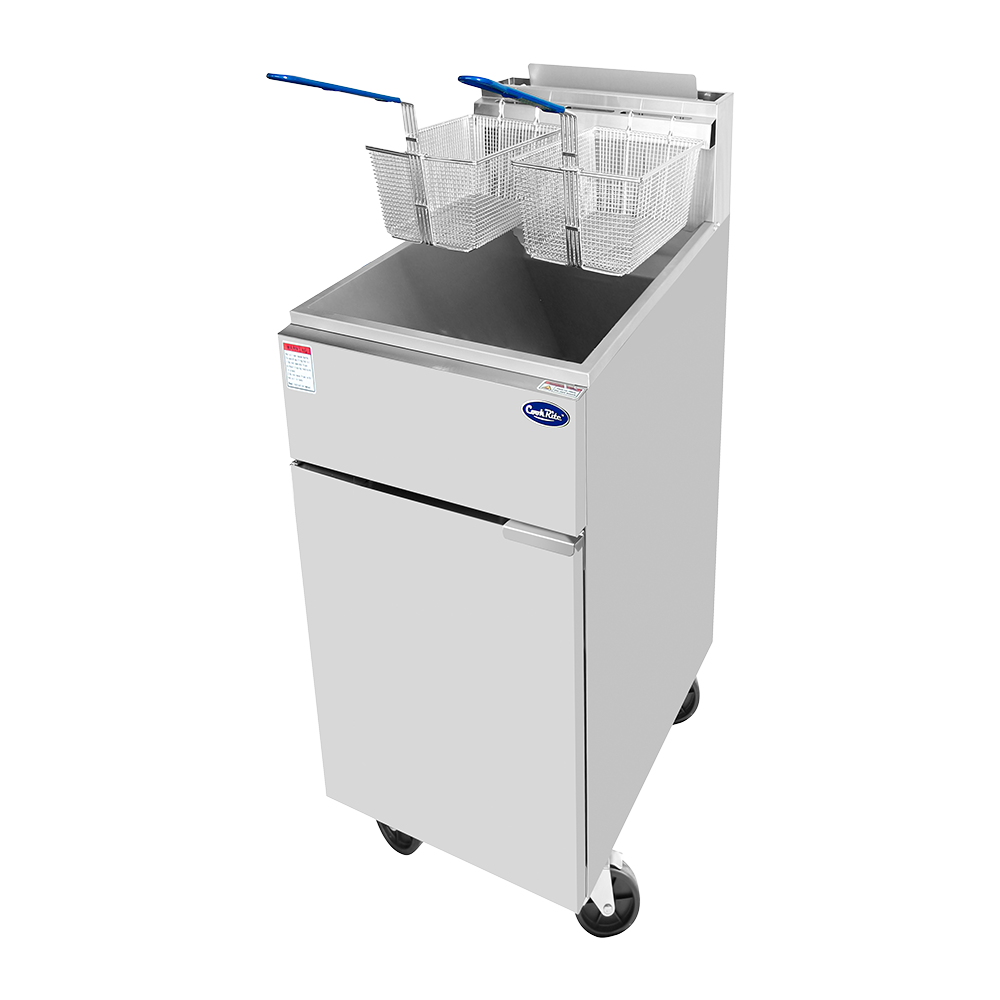

Model: ATFS-50
Burners and Control Method: 4 Burners Independent Manual Control
Gas Type: NG LP
Intake-tube Pressure (in. W.C.): 45026
Per B.T.U./h: 34,000 30,000
Total B.T.U./h: 136,000 120,000
Basket Dimensions: 13 3/10×6 1/2 ×5 9/10
Exterior Dimension: 15 3/5×30 1/10×44 2/5
Nozzle No.#: NG36 LP52
Regulator: 4" w.c. 10" w.c.
Net Weight lbs: 143
Gross Weight lbs: 171
:
• Stainless steel exterior and interior
• Welded stainless steel tank
• Heavy duty burners with a stnding flame and
• standby pilots
• High quality thermostat maintains select
• temperature automatically between 200°F–400°F
• Oil cooling zone in the bottom of the tank captures
• food particles and extends oil life
• Safety valve with an automatic voltage stabilizing
• function
• Self-reset high temperature limiting device
• Two(2) nickel plated baskets with coated handles
• standard
• Wire crumb rack and basket hanger standard
• Available in Natural and Propane gas
• 3/4 ” NPT rear gas connection and regulator
• Four(4) casters standard
• Leg kit part #: 301110006
• Fryer splash guard
Model: ATFS-50
Burners and Control Method: 4 Burners Independent Manual Control
Gas Type: NG LP
Intake-tube Pressure (in. W.C.): 45026
Per B.T.U./h: 34,000 30,000
Total B.T.U./h: 136,000 120,000
Basket Dimensions: 13 3/10×6 1/2 ×5 9/10
Exterior Dimension: 15 3/5×30 1/10×44 2/5
Nozzle No.#: NG36 LP52
Regulator: 4" w.c. 10" w.c.
Net Weight lbs: 143
Gross Weight lbs: 171
:
