Description
Standard Features:
• Stainless steel exterior and interior

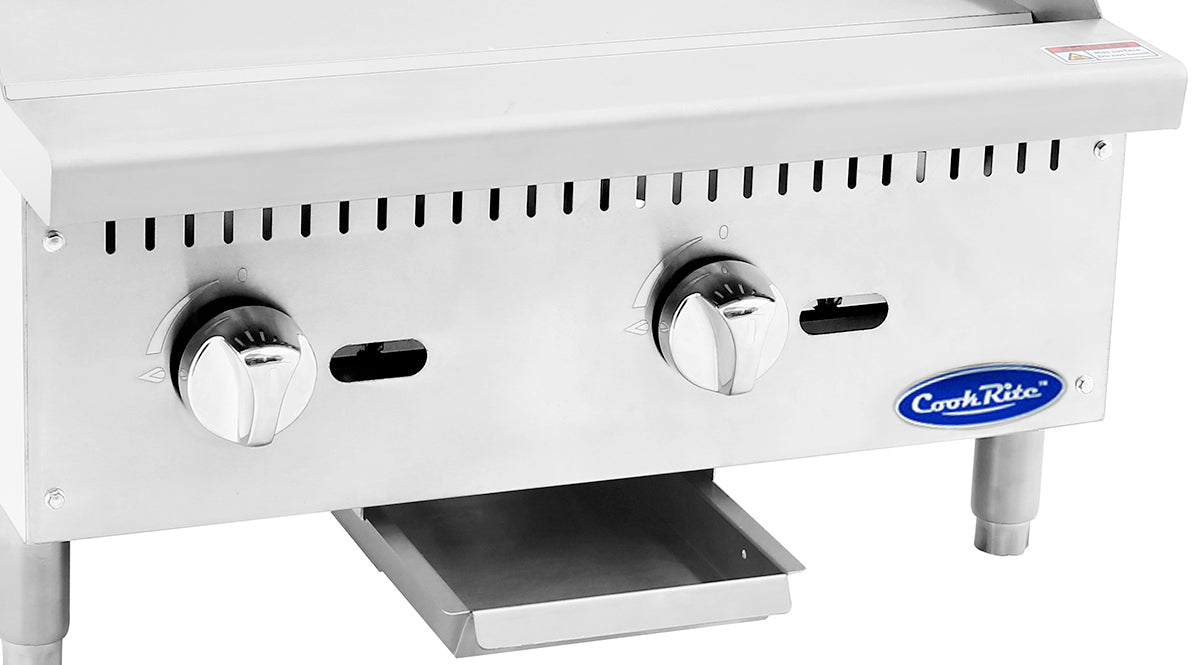

• Stainless steel grease drawer

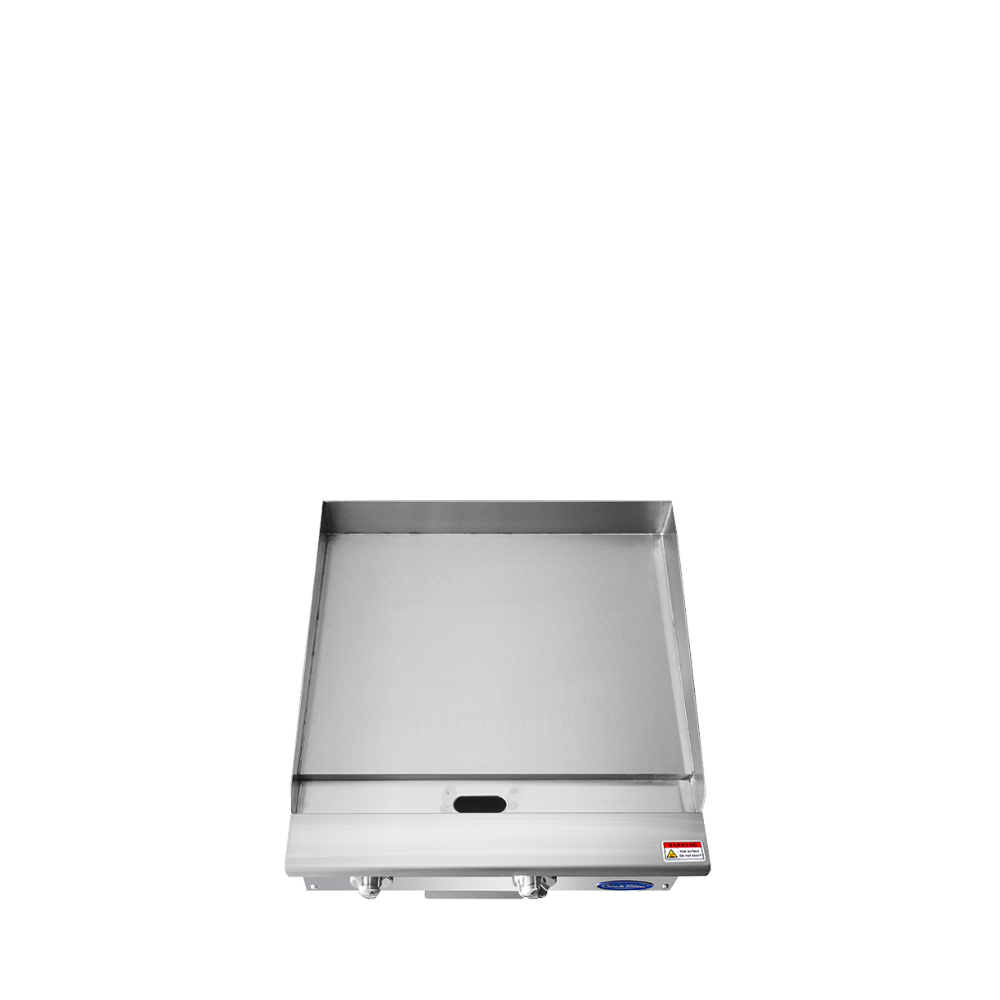

• Heavy duty 3/4” thick polished steel griddle plate
• 30,000 BTU burners per 12” section with standby pilots

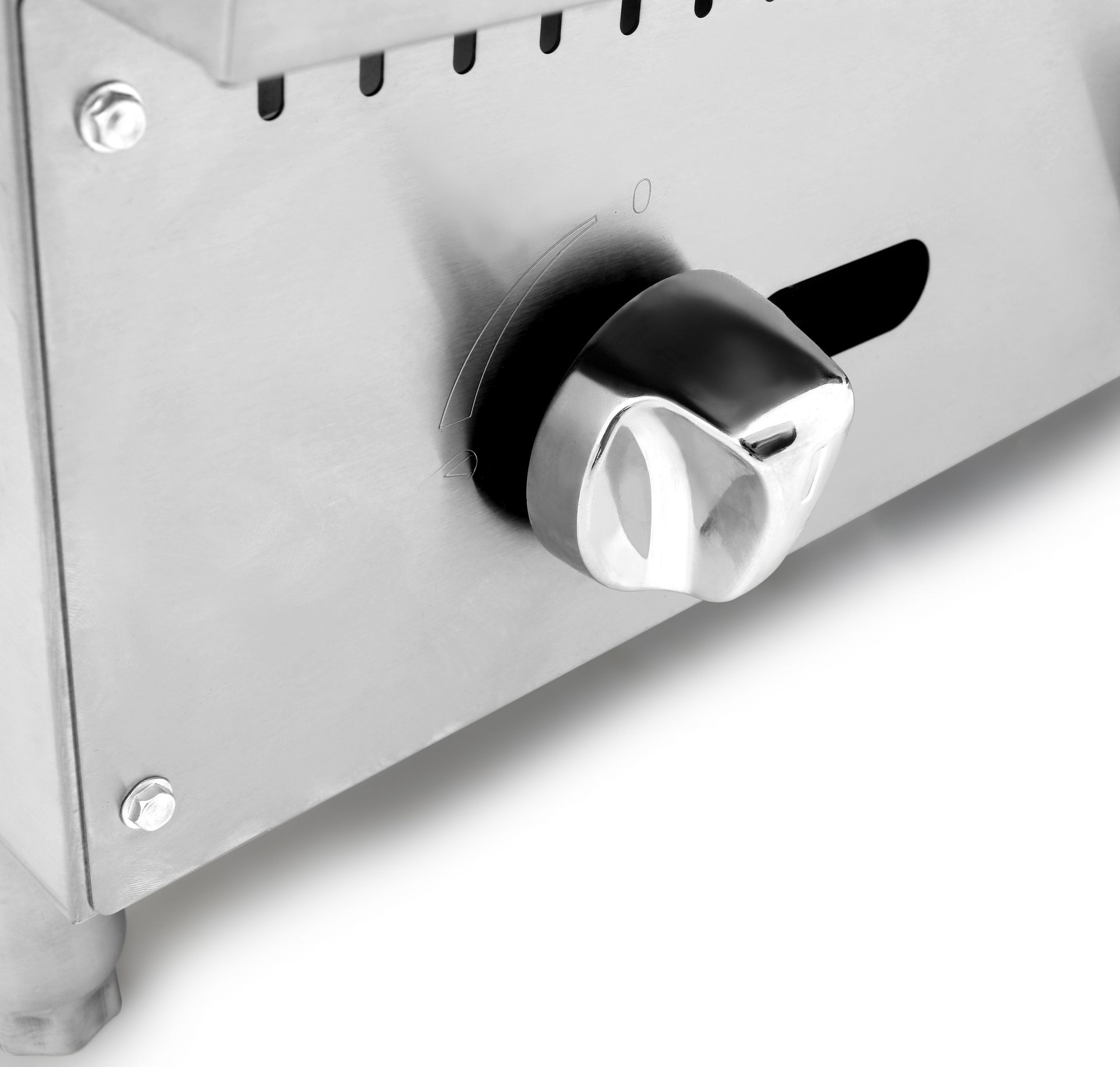

• Independent manual controls for each 12” section

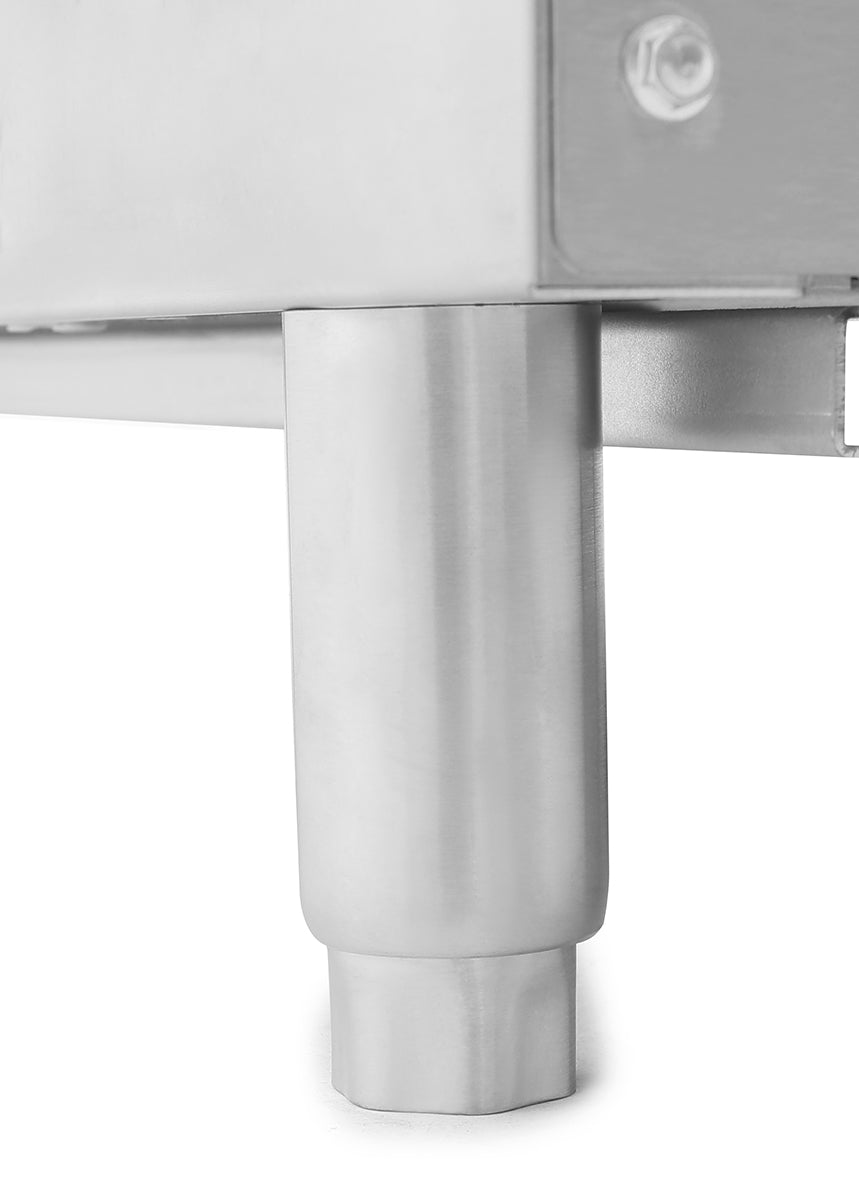

• Stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard
Model: ATMG-24
Burners and Control Method: 2 Burners Independent Manual Control
Gas Type: NG LP
Intake Tube Pressure (in W.C.): 45026
Per B.T.U./h: 30,000 30,000
Total B.T.U./h: 60,000 60,000
Regulator: 4" w.c. 10" w.c.
Nozzle No.#: NG37 LP51
Work Area (inch): 23 9/10 x 19 9/10
Exterior Dimensions (inch): 24× 28 3/5×15 1/5
Net Weight (lbs): 161
Gross Weight (lbs): 195
:
• Stainless steel exterior and interior
• Stainless steel grease drawer
• Heavy duty 3/4” thick polished steel griddle plate
• 30,000 BTU burners per 12” section with standby pilots
• Independent manual controls for each 12” section
• Stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard
Model: ATMG-24
Burners and Control Method: 2 Burners Independent Manual Control
Gas Type: NG LP
Intake Tube Pressure (in W.C.): 45026
Per B.T.U./h: 30,000 30,000
Total B.T.U./h: 60,000 60,000
Regulator: 4" w.c. 10" w.c.
Nozzle No.#: NG37 LP51
Work Area (inch): 23 9/10 x 19 9/10
Exterior Dimensions (inch): 24× 28 3/5×15 1/5
Net Weight (lbs): 161
Gross Weight (lbs): 195
:
