Description
Standard Features:
• Stainless steel exterior and interior

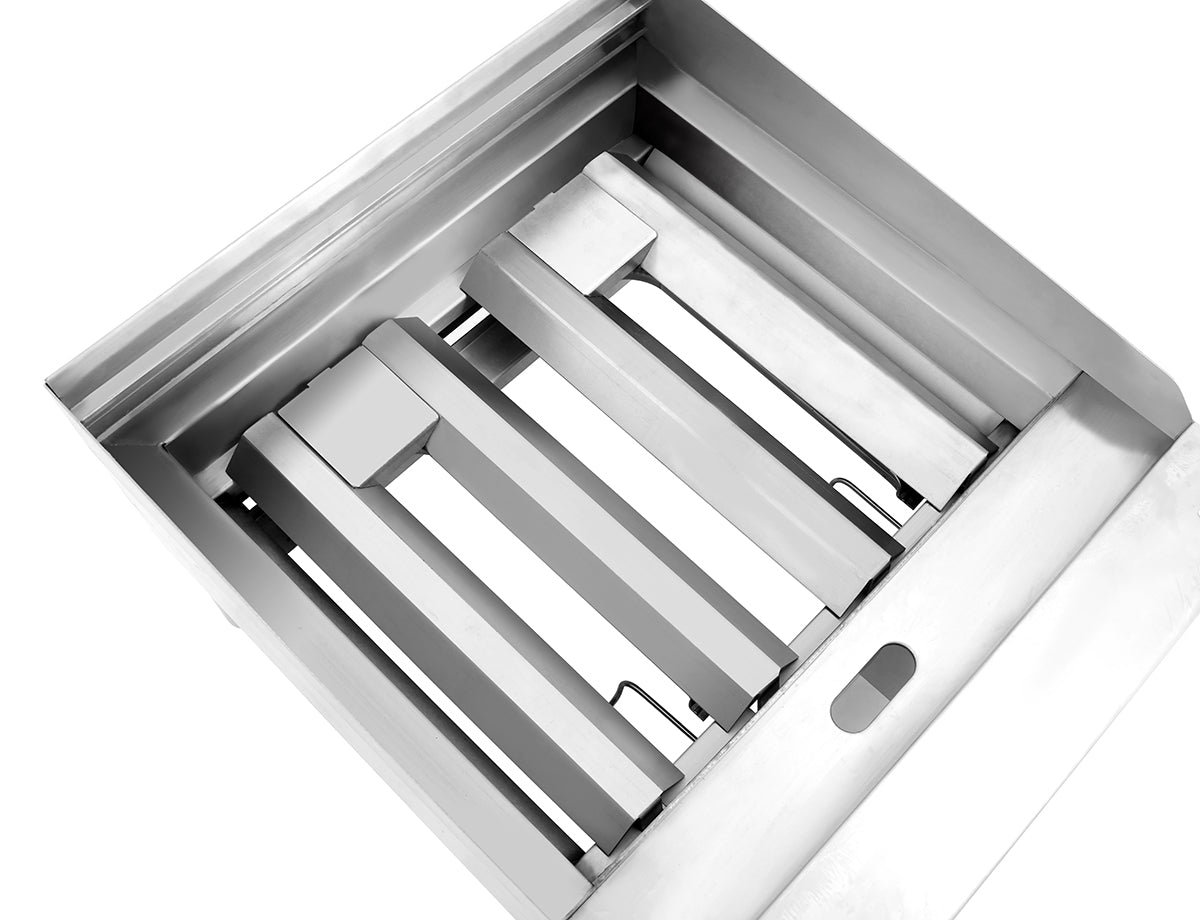

• 35,000 BTU stainless steel burners with standby pilot

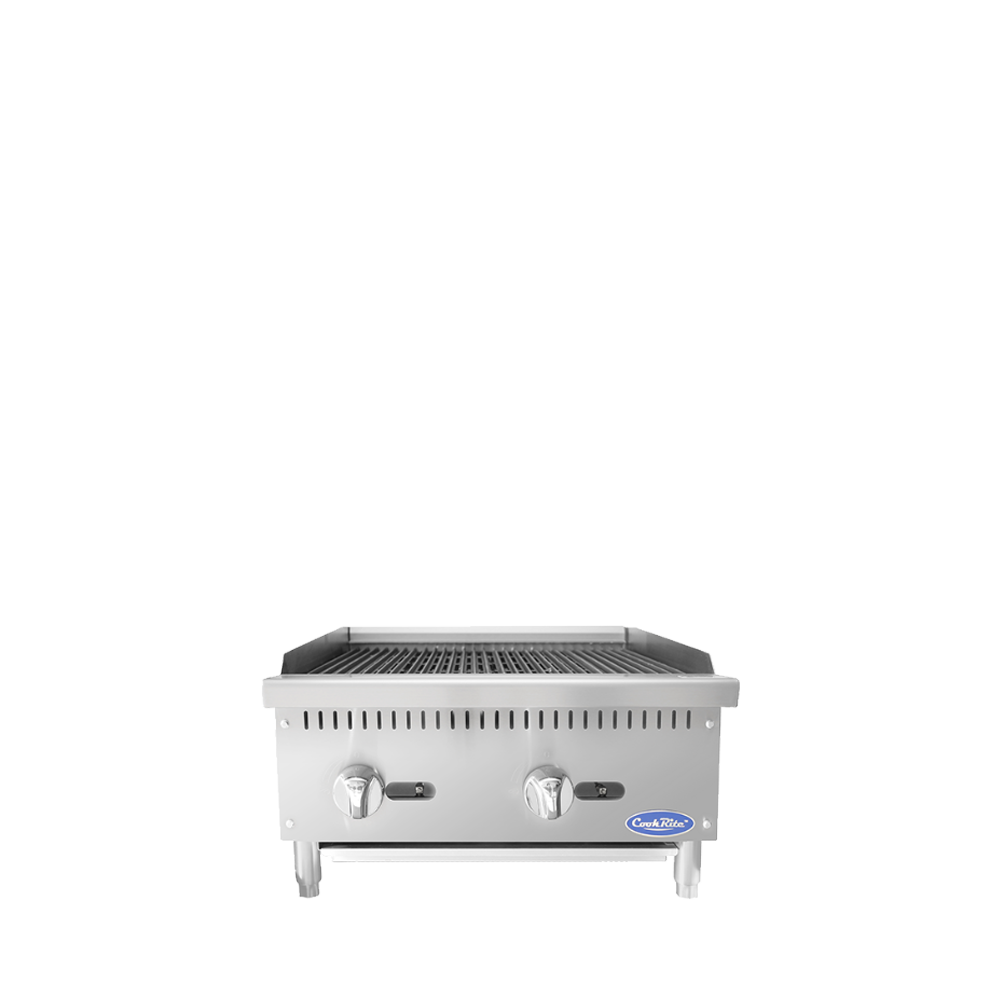

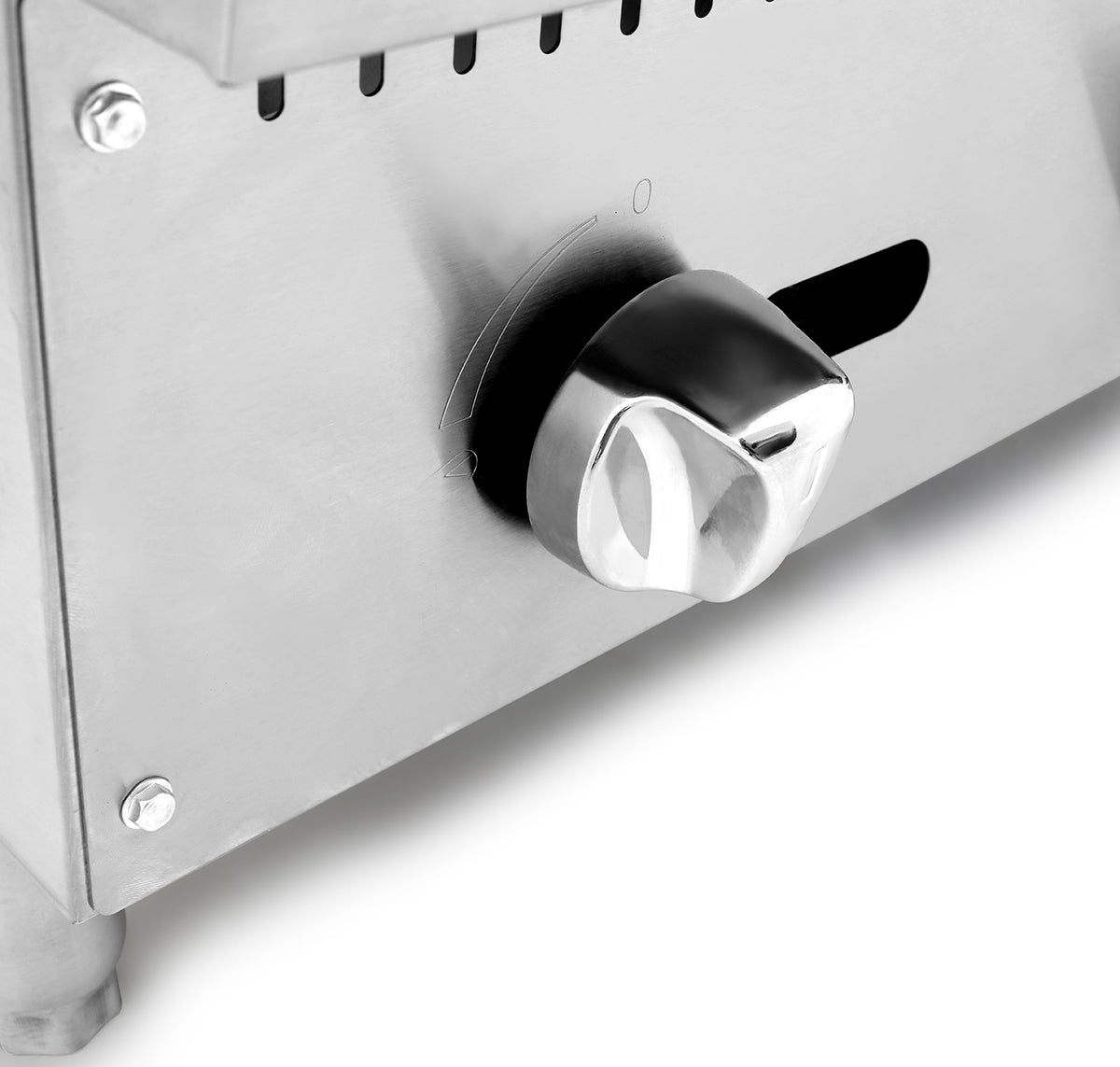

• Independent manual controls every 12”

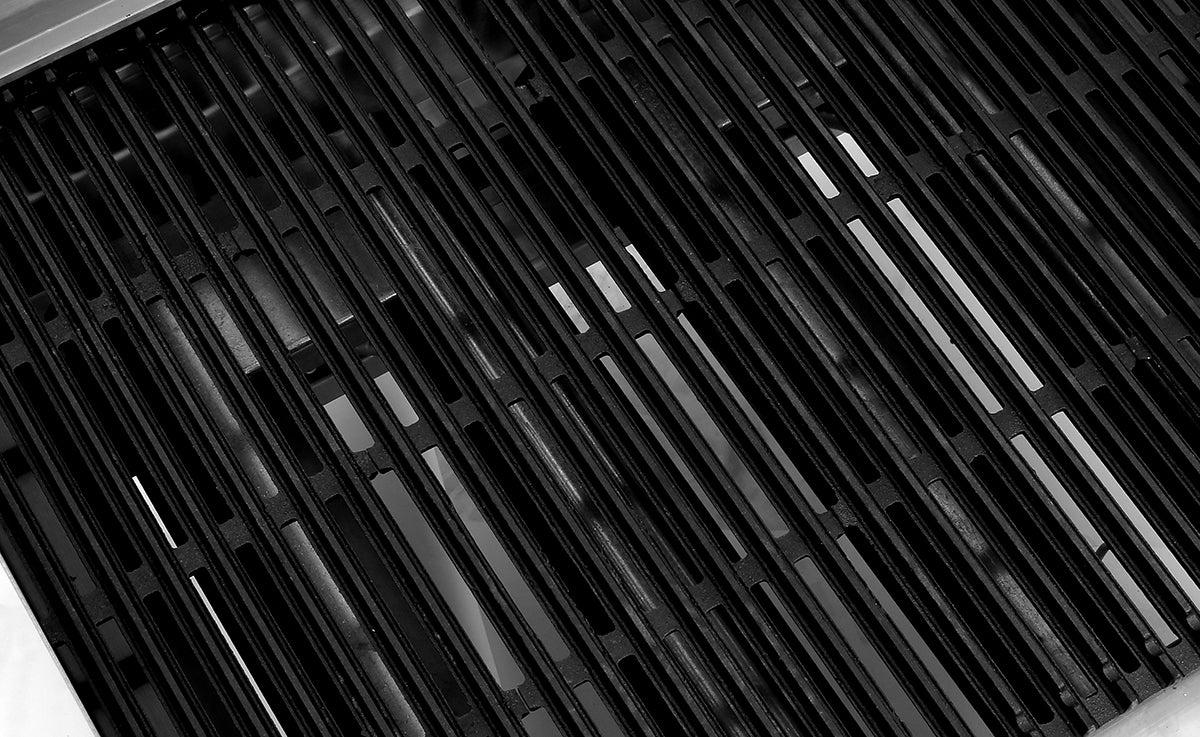

• Heavy-duty, reversible cast iron grates
• Top grates are adjustable multi-level

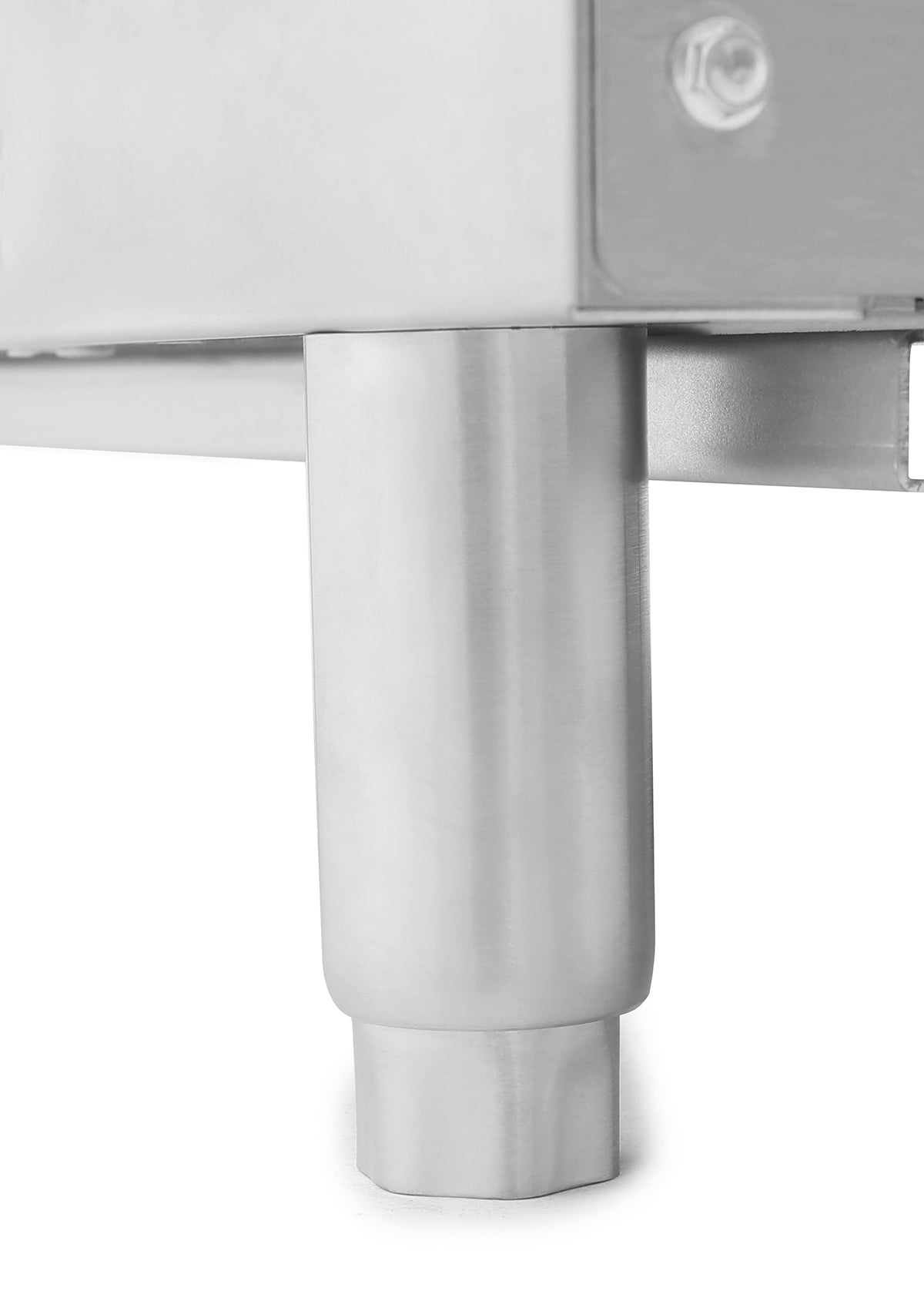

• Adjustable, stainless steel legs standard

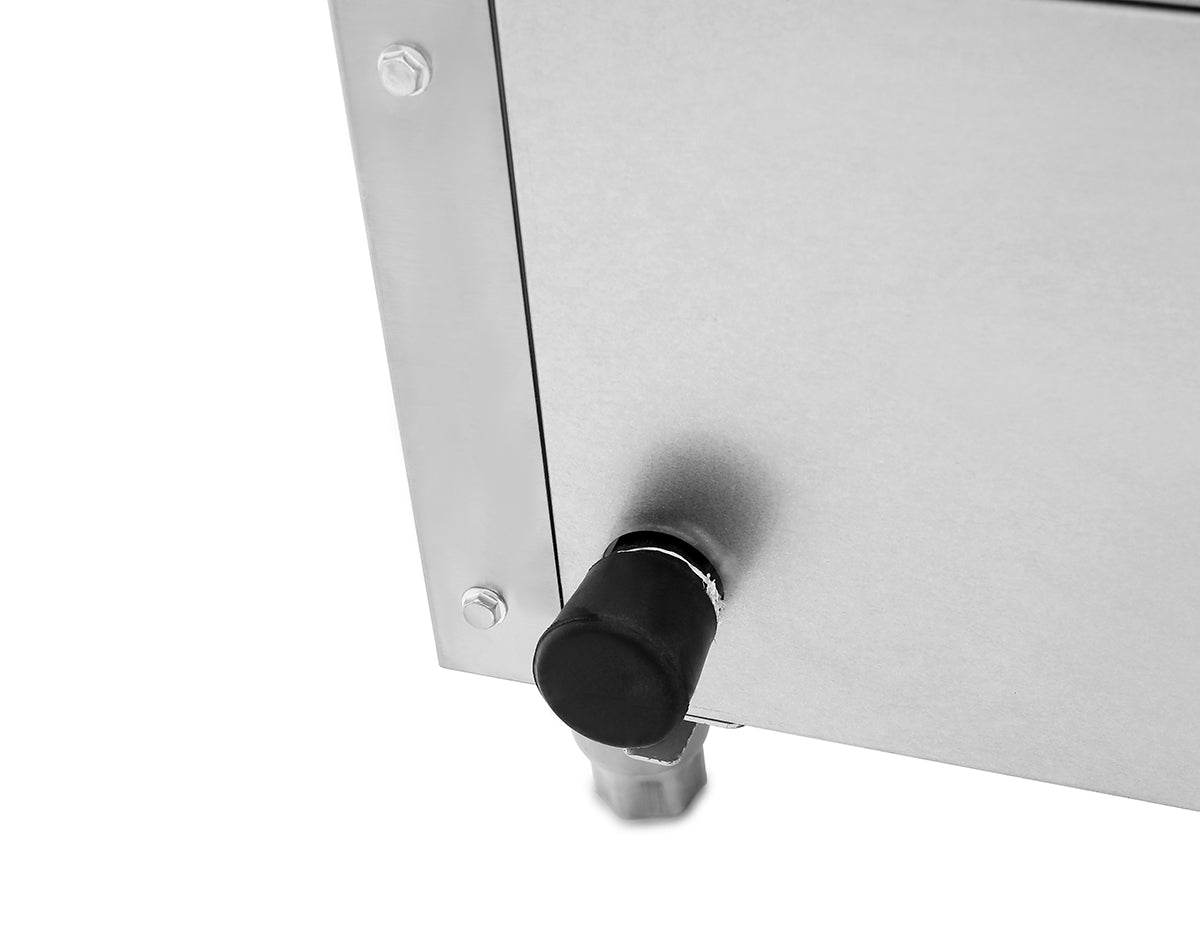

• 3/4” NPT rear gas connection and regulator standard
Model: ATRC-24
Burners and Control Method: 2 Burners Independent Manual Control
Gas Type: NG LP
Intake Tube Pressure (in W.C.): 45026
Per B.T.U./h: 35,000 35,000
Total B.T.U./h: 70,000 70,000
Regulator: 4" w.c. 10" w.c
Work Area: 23 9/10 ×20 1/5
Exterior Dimensions: 24×27 3/5×15 1/5
Net Weight: 117
Gross Weight: 147
:
:
• Stainless steel exterior and interior
• 35,000 BTU stainless steel burners with standby pilot
• Independent manual controls every 12”
• Heavy-duty, reversible cast iron grates
• Top grates are adjustable multi-level
• Adjustable, stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard
Model: ATRC-24
Burners and Control Method: 2 Burners Independent Manual Control
Gas Type: NG LP
Intake Tube Pressure (in W.C.): 45026
Per B.T.U./h: 35,000 35,000
Total B.T.U./h: 70,000 70,000
Regulator: 4" w.c. 10" w.c
Work Area: 23 9/10 ×20 1/5
Exterior Dimensions: 24×27 3/5×15 1/5
Net Weight: 117
Gross Weight: 147
:
:
