Description
Standard Features:
• Stainless steel sides and front valve cover
• Full width, removable stainless steel drip pan for easy cleanup
• Heavy duty cast iron top grates

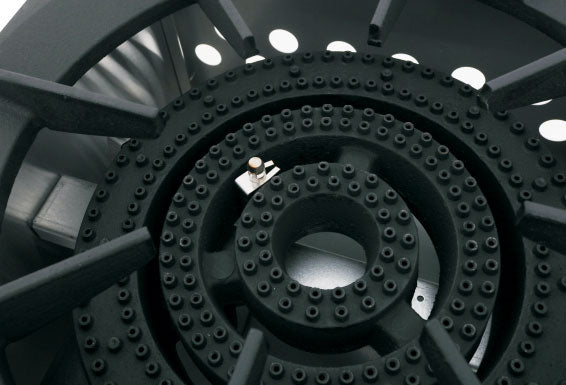

• Heavy duty cast iron three-ring burner, rated at a total of 80,000 BTU/h
• Cast iron burners and top grates
• Stainless steel tubing for pilots and pilot tips per burner ring
• Each burner is equipped with two continuous pilots
• Two manual controls to operate the inner and outer rings independently
• Stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard

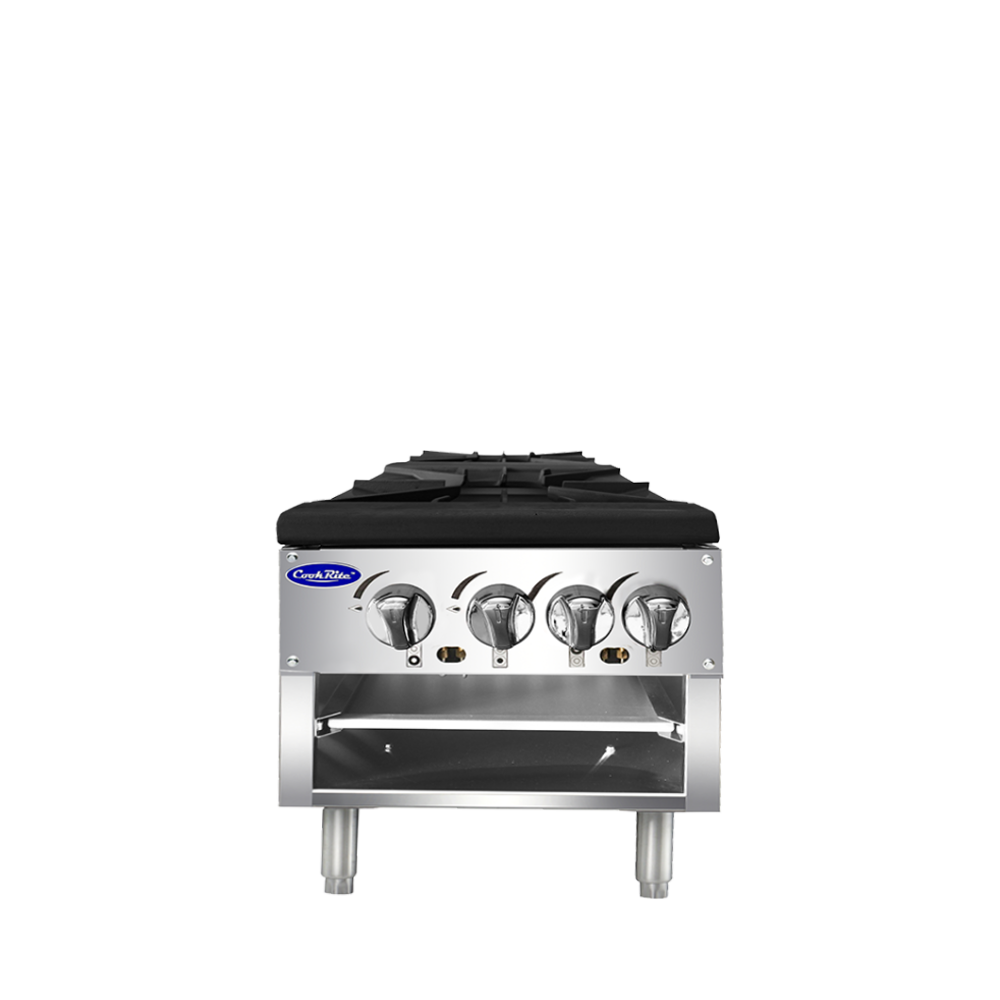

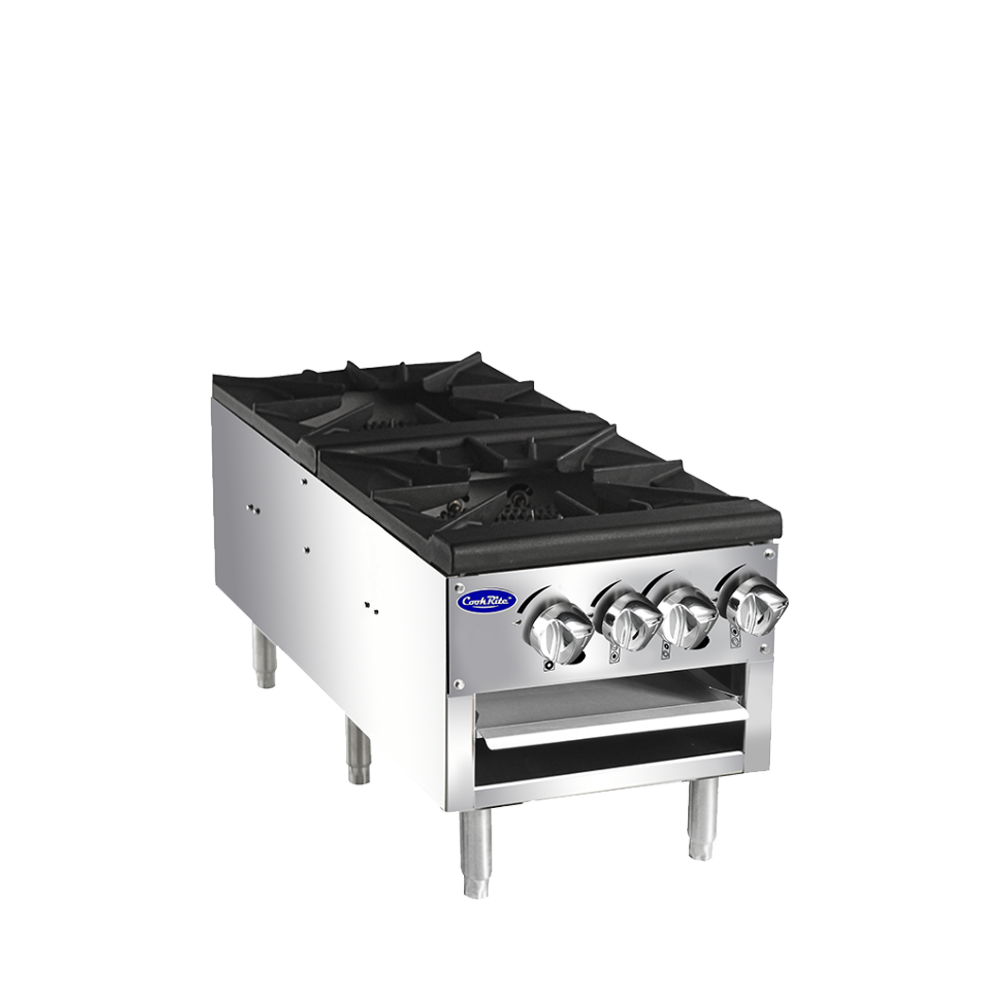

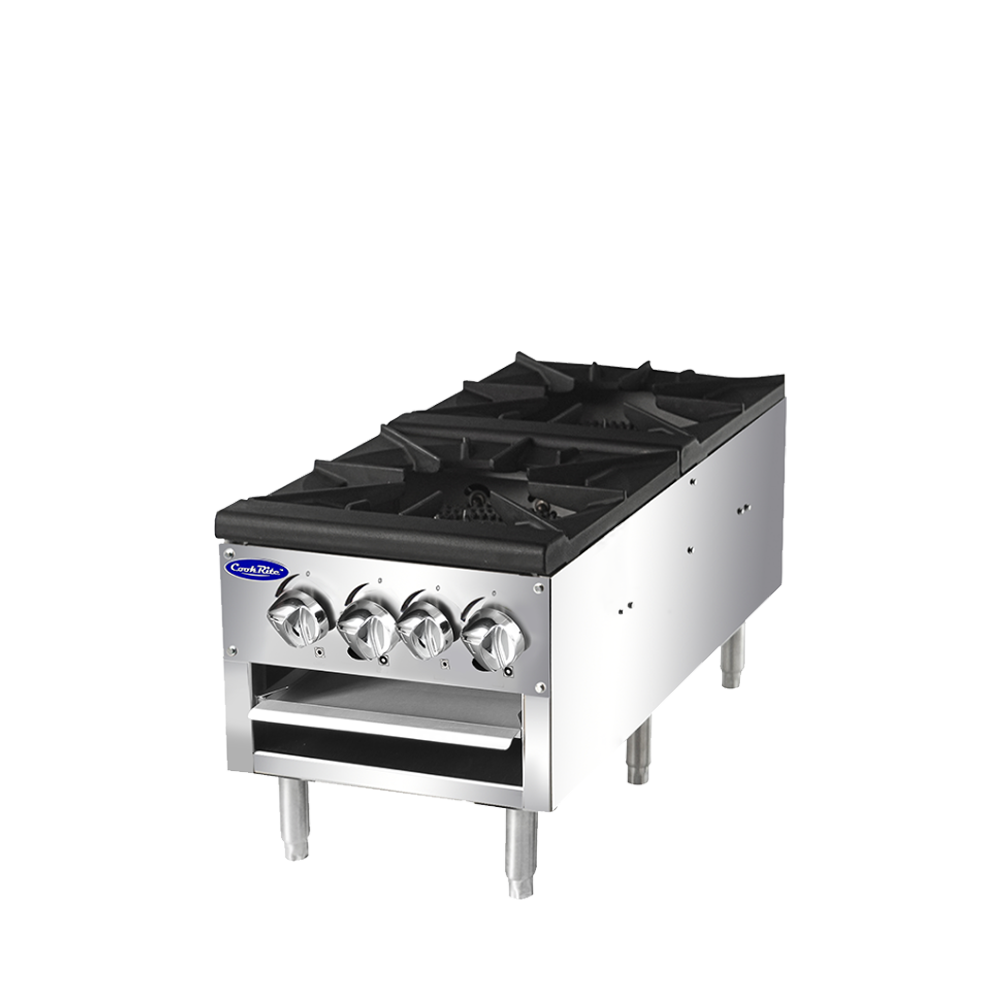

Model: ATSP-18-2L
Burners and Control Method: 4 Burner Independent Manual Control
Gas Type: NG
Intake Tube Pressure (in W.C.): 4
Per B.T.U./h: 40000
Total B.T.U./h: 160000
Regulator: 4" w.c.
Exterior Dimensions (inch): 18 × 41 7/10 × 17 9/10
Net Weight (lbs): 198
Gross Weight (lbs): 221
:
:
:
• Stainless steel sides and front valve cover
• Full width, removable stainless steel drip pan for easy cleanup
• Heavy duty cast iron top grates
• Heavy duty cast iron three-ring burner, rated at a total of 80,000 BTU/h
• Cast iron burners and top grates
• Stainless steel tubing for pilots and pilot tips per burner ring
• Each burner is equipped with two continuous pilots
• Two manual controls to operate the inner and outer rings independently
• Stainless steel legs standard
• 3/4” NPT rear gas connection and regulator standard
Model: ATSP-18-2L
Burners and Control Method: 4 Burner Independent Manual Control
Gas Type: NG
Intake Tube Pressure (in W.C.): 4
Per B.T.U./h: 40000
Total B.T.U./h: 160000
Regulator: 4" w.c.
Exterior Dimensions (inch): 18 × 41 7/10 × 17 9/10
Net Weight (lbs): 198
Gross Weight (lbs): 221
:
:
:
